SpeedBee TX800 5.8GHz Video Transmitter

₹3499 ₹4599 23.92% OFF

Adjustable Output Power up to 800mW
5.8GHz 48-Channel Analog Transmission
IRC Tramp Smart Control
Compact 20×20 Mounting Pattern
Efficient Cooling & MMCX Connector

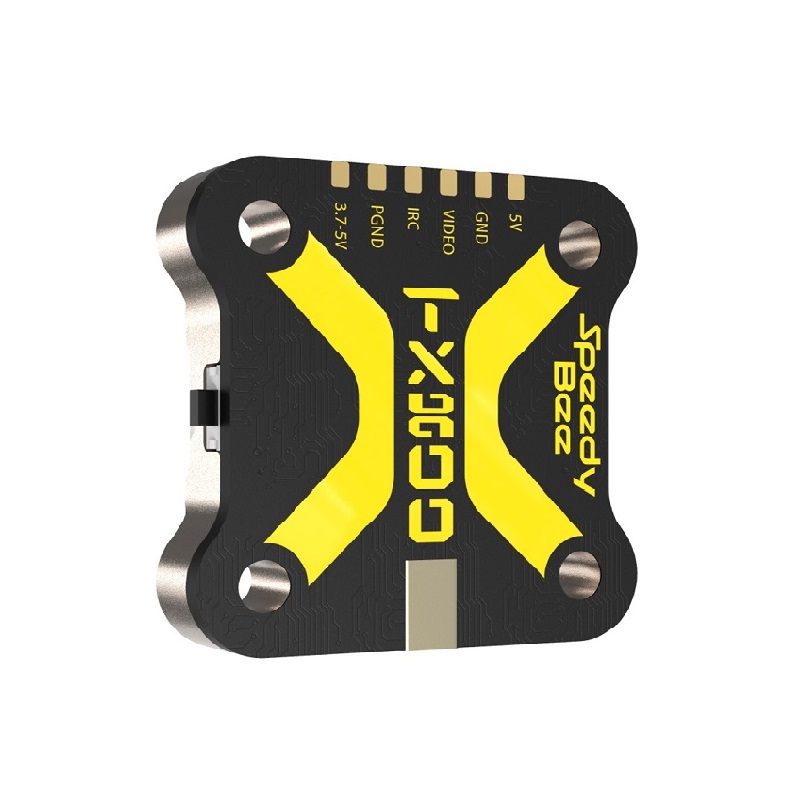

SpeedyBee TX800 5.8GHz VTX with up to 800mW output

SpeedBee TX800 5.8GHz Video Transmitter:

The SpeedyBee TX800 5.8GHz Video Transmitter (VTX) from Robo Pixel is a high-performance analog FPV video transmitter designed to deliver crystal-clear, low-latency video transmission for FPV racing drones, freestyle quadcopters, cinematic drones, and long-range UAVs. Operating on the 5.8GHz frequency band with 48 channels, the TX800 ensures stable signal quality and excellent compatibility with most FPV goggles and receivers.

Featuring adjustable transmission power levels of PIT, 25mW, 200mW, 400mW, and 800mW, the SpeedyBee TX800 allows pilots to optimize video range for indoor practice, racing events, or long-range outdoor flights. The built-in IRC Tramp protocol enables remote VTX configuration directly through compatible flight controllers, making channel and power adjustments quick and convenient.

Its lightweight 20×20mm mounting design, MMCX antenna connector, efficient aluminum heatsink, and compact form factor make the TX800 an excellent choice for modern FPV drone builds. Whether you're assembling a new FPV quad or upgrading an existing drone, the SpeedyBee TX800 delivers dependable video performance with minimal interference.

Technical Specifications

Specification	Details
Product Name	SpeedyBee TX800 5.8GHz Video Transmitter
Product Type	Analog FPV Video Transmitter (VTX)
Frequency	5.8GHz
Channels	48CH
Output Power	PIT / 25mW / 200mW / 400mW / 800mW
Input Voltage	3.7V – 5.5V
Firmware/Protocol	IRC Tramp
Antenna Connector	MMCX
Mounting Pattern	20 × 20 mm
PCB Size	28 × 28 mm
Weight	Approx. 5.6g (without antenna)
Applications	FPV Drones, RC Aircraft & UAVs
