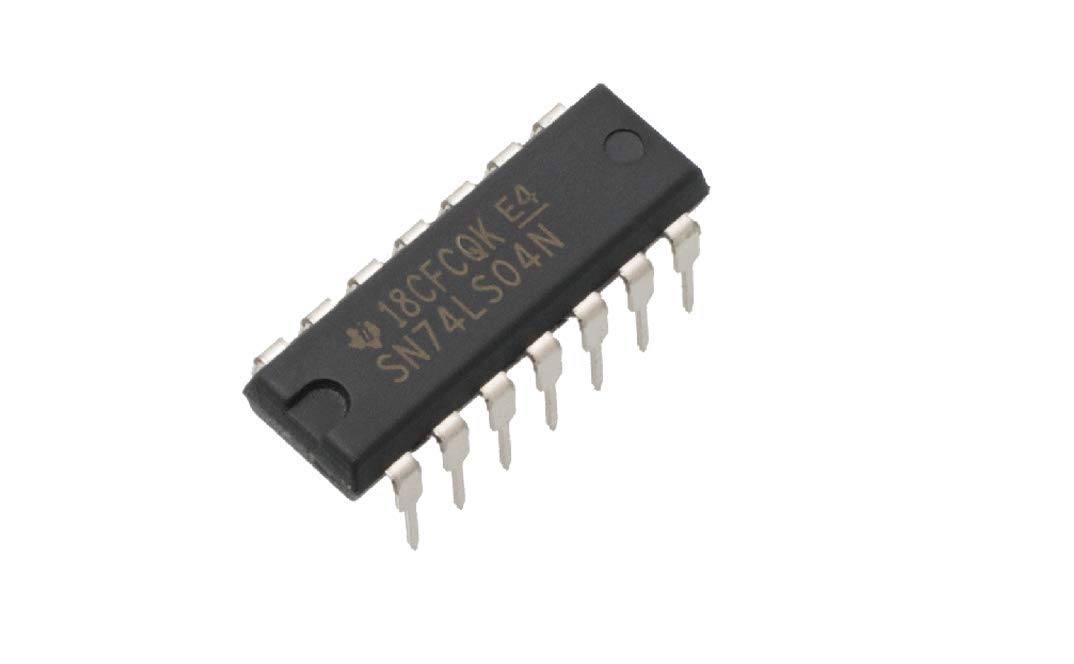

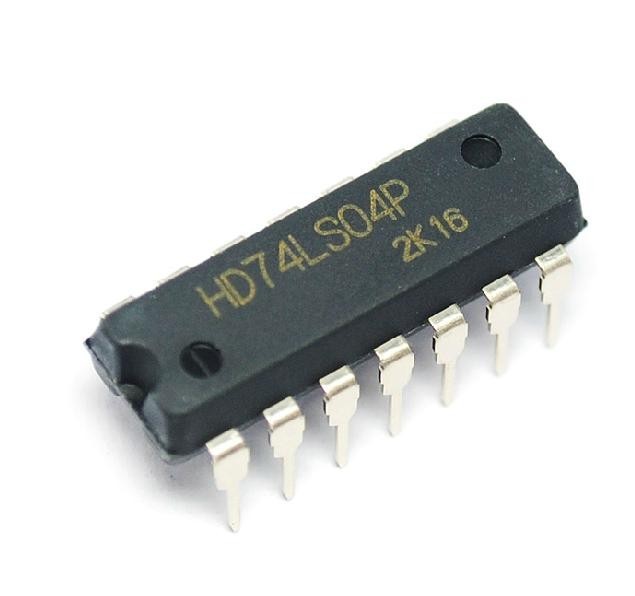

IN74LS04N IK – NOT Gate IC (Pack of 5):

The IN74LS04N IK NOT IC is a high-performance Hex Inverter (NOT Gate) IC based on TTL (Transistor-Transistor Logic) technology. It contains six independent NOT gates in a single 14-pin DIP package. Each gate inverts the input logic signal, providing a logical “1” output for a “0” input, and vice versa.

This IC is widely used in digital logic circuits, embedded systems, microcontroller-based projects, and signal processing applications. Its fast switching speed, low power consumption, and high reliability make it an essential component for electronics enthusiasts, students, and professionals.

Pin Configuration (DIP-14)

• Pin 1, 3, 5, 9, 11, 13: Inputs A1–A6

• Pin 2, 4, 6, 8, 10, 12: Outputs Y1–Y6 (inverted signals)

• Pin 7: Ground (GND)

• Pin 14: Vcc (+5V Supply)

Applications

• Digital logic circuits

• Signal inversion in embedded systems

• Microcontroller & microprocessor projects

• Timing and oscillator circuits

• Switching and control applications

• Robotics and IoT devices
