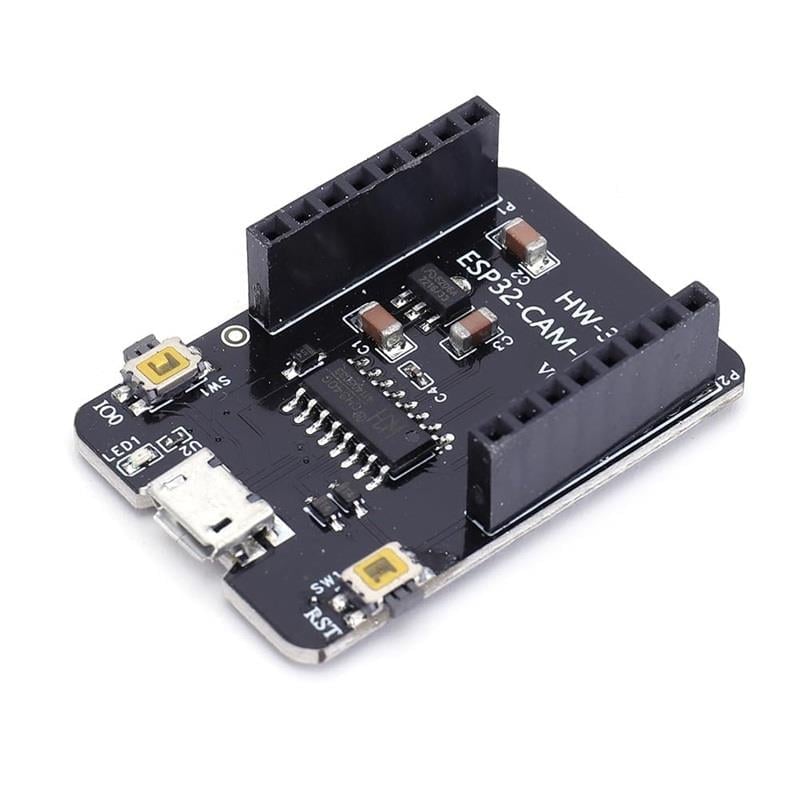

ESP32-CAM-MB Micro USB Download Module for ESP32-CAM Development Board:
The ESP32-CAM-MB Micro USB Download Module is a compact and easy-to-use interface board designed specifically to work with the ESP32-CAM development board. It simplifies the programming process by offering a plug-and-play solution for uploading code and communicating with the ESP32-CAM via USB, eliminating the need for an external USB-to-TTL converter.
This module includes an onboard USB-to-Serial (CH340 or CP2102) interface and essential circuit components such as an auto-reset mechanism and boot mode handling, ensuring hassle-free programming and debugging.
Technical Specifications
| Parameter | Details |
|---|---|
| USB Interface | Micro USB |
| Communication Chip | CH340G / CP2102 (variant dependent) |
| Input Voltage | 5V via USB |
| Output Voltage | 5V/3.3V logic (depends on the ESP32-CAM) |
| Compatibility | ESP32-CAM board |
| Functions | Code upload, serial monitor, debugging |
| Dimensions | Approx. 25mm x 20mm |
| Connector Type | 8-pin male header |
How to Use
-

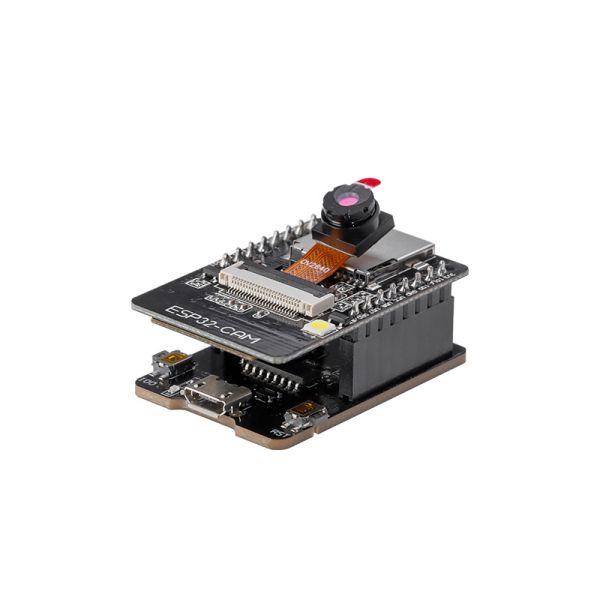

Insert the ESP32-CAM board into the ESP32-CAM-MB module's 8-pin header.
-
Connect a Micro USB cable from the module to your PC.
-
Open Arduino IDE or other IDEs, select the appropriate board and port.
-
Click Upload to flash the code. The auto-reset and boot logic handles everything else.
-
Open Serial Monitor to view output from your ESP32-CAM.
-
Easy Returns
-
Quality Service
-
Original Product
Why Choose This Module?
-
No extra buttons, no manual GPIO0 control.
-
Stable and reliable code upload process.
-
Clean, compact, and highly portable.
-
Ideal companion for the ESP32-CAM board, especially for beginners and rapid prototyping.
Applications
-
Programming and flashing ESP32-CAM boards
-
Serial debugging for ESP32-CAM projects
-
Camera-based IoT and AI projects
-
Wireless surveillance and security systems
-
Face recognition, object detection, and automation applications
