DS18B20 Temperature Sensor Module

₹69 ₹99 30.3% OFF

Temperature Range: -55°C to +125°C (-67°F to +257°F)
Digital Output: No need for analog inputs or ADC conversion.
Package Includes : 1 x DS18B20 Temperature Sensor Module

Get accurate and reliable temperature readings.

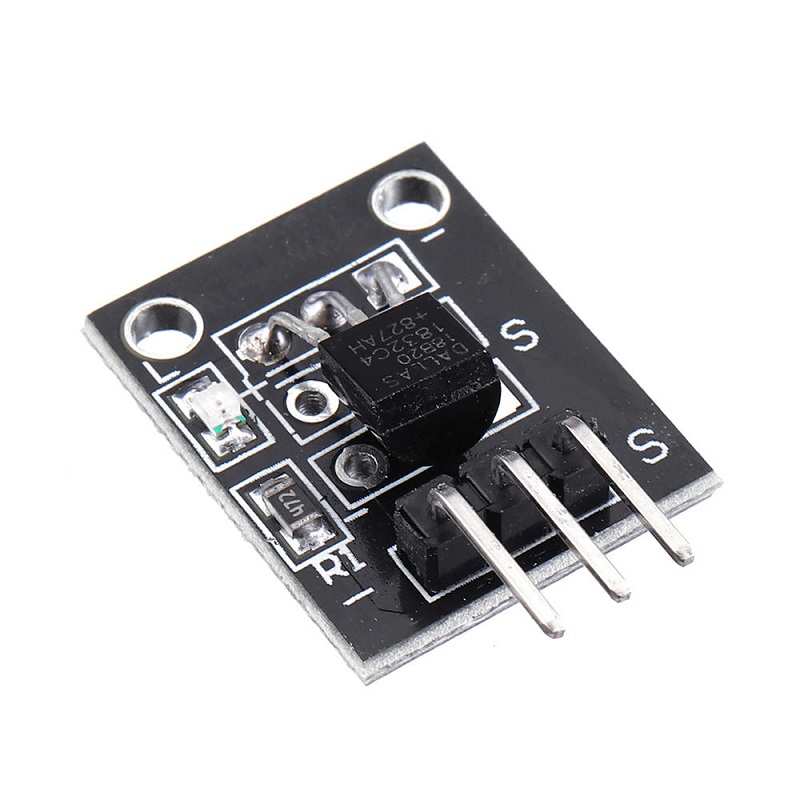

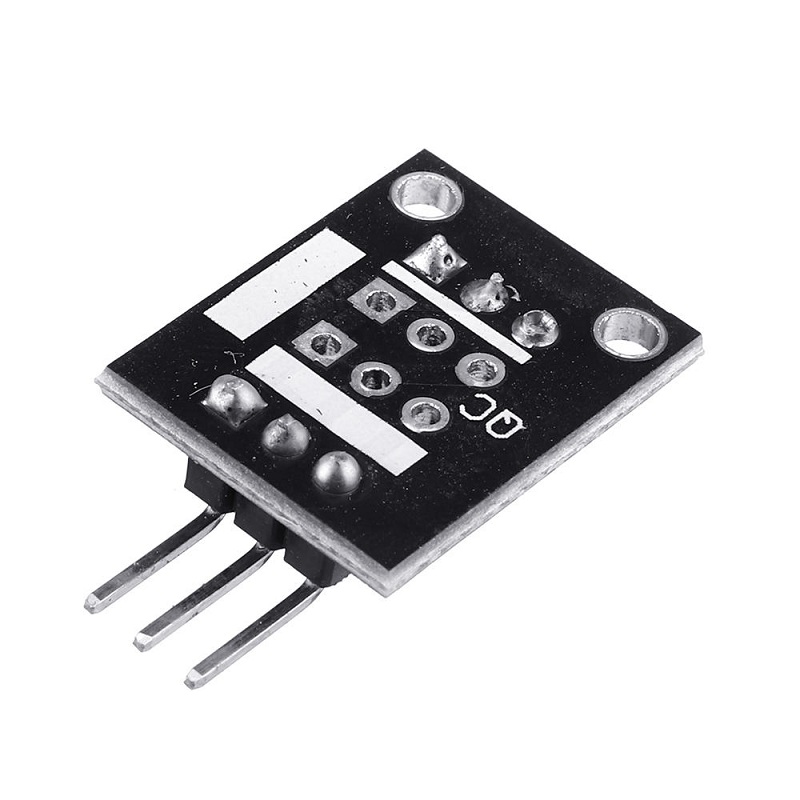

DS18B20 Temperature Sensor Module:

The DS18B20 Temperature Sensor Module is a highly accurate, digital temperature sensing solution ideal for hobbyists, students, and professionals. It features the DS18B20 digital thermometer from Maxim Integrated and provides 9 to 12-bit Celsius temperature measurements, communicating over a 1-Wire bus protocol that requires only one data line (and ground) for communication with a microcontroller.

Specifications

Parameter	Value
Sensor Chip	Maxim DS18B20
Temperature Range	-55°C to +125°C
Accuracy	±0.5°C (-10°C to +85°C)
Interface	1-Wire
Resolution	9 to 12 bits (programmable)
Power Supply Voltage	3.0V to 5.5V
Dimensions	Varies (Module/Waterproof)
Output Type	Digital

Why Choose the DS18B20?

Unlike analog temperature sensors, the DS18B20 provides a direct digital output, eliminating the need for an analog-to-digital converter. Its compact size, high accuracy, and simplicity make it ideal for temperature sensing in embedded systems, Arduino, Raspberry Pi, and IoT projects.
