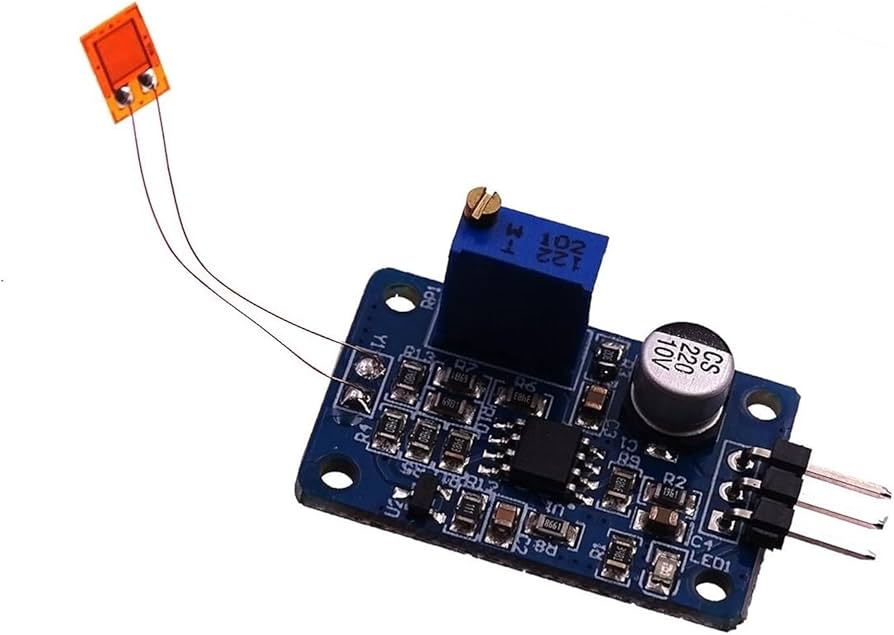

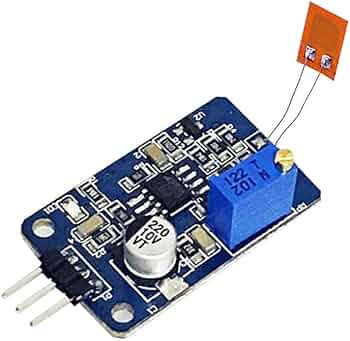

Strain Gauge Bending Sensor Module Y3 Weighing Amplifier Module:

 The Y3 Strain Gauge Bending Sensor Module with integrated weighing amplifier is a compact, high-sensitivity module designed for accurate weight, pressure, and force detection. Utilizing a metallic strain gauge and Wheatstone bridge configuration, this sensor converts mechanical deformation into electrical signals, which are then amplified and digitized by the onboard circuitry.

Whether you are developing a digital weighing scale, a robotic force feedback system, or an IoT-based structural health monitor, the Y3 bending sensor module provides a ready-to-use solution with reliable performance.

How It Works

The strain gauge detects mechanical deformation (bending or pressure), which causes a change in electrical resistance. This change is interpreted by the Wheatstone bridge circuit and amplified by the onboard signal amplifier to provide a smooth analog voltage, proportional to the applied force or weight. Connect this signal to an ADC input of your microcontroller to read and process the data.

Applications

• Digital Weighing Scales (kitchen, postal, lab)

• Robotic Arm Force Detection

• Industrial Process Monitoring

• Haptic Feedback for Human-Machine Interfaces

• DIY Projects for IoT & Smart Devices

• Structural Load & Bending Force Measurements

Getting Started

You can easily interface the module with Arduino, Raspberry Pi, ESP8266, ESP32, STM32, or any platform that can read analog input. Use basic ADC code to read the sensor voltage and convert it to weight or force with calibration.
