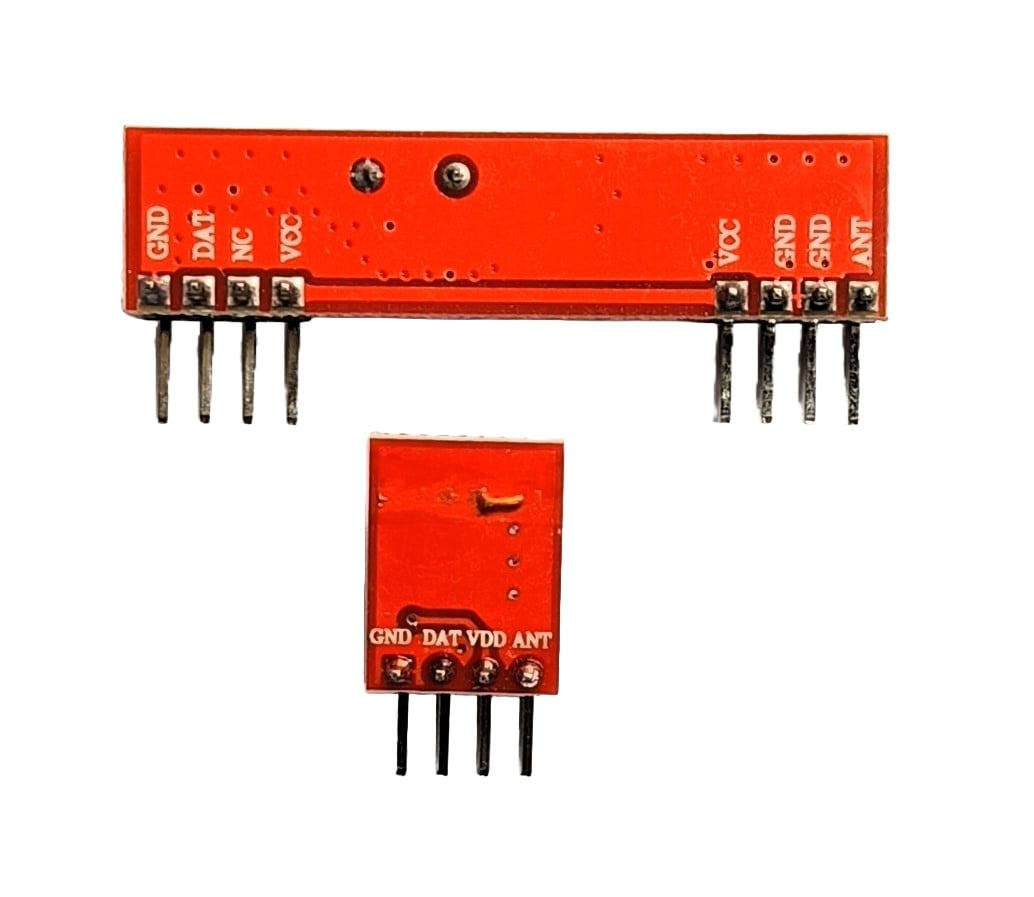

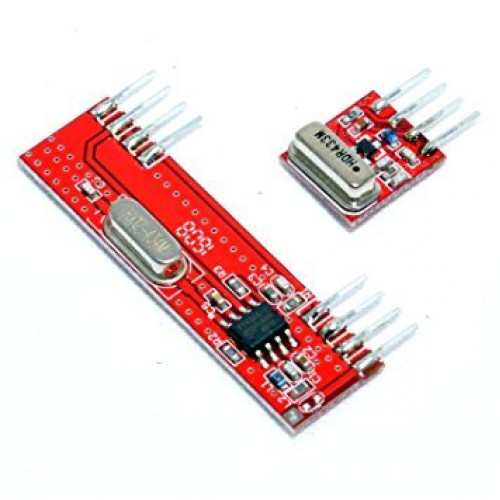

433 MHz RF Transmitter (Tx) & Receiver Pair (Rx):
The 433 MHz RF Module TX & RX Pair is a simple and cost-effective wireless communication solution ideal for short-distance data transmission. Widely used in remote control systems, wireless security, sensor data transmission, and DIY electronics projects, this module pair operates on the 433 MHz ISM (Industrial, Scientific, and Medical) band.
Applications
-
Wireless remote control systems
-
Home automation
-
Security systems
-
Sensor data transmission
-
Robotics and IoT projects
-
DIY electronics and Arduino projects
Technical Specifications
Transmitter Module (TX):
-
Voltage: 3V – 12V DC
-
Output Power: 10mW (at 12V)
-
Range: Up to 100 meters (clear line-of-sight)
-
Dimensions: Approx. 19mm x 19mm
Receiver Module (RX):
-
Operating Voltage: 5V DC
-
Sensitivity: -105dBm
-
Frequency Range: 433.92 MHz
-
Dimensions: Approx. 30mm x 14mm
Why Choose This Module?
-
Easy to use with Arduino and other microcontrollers
-
Budget-friendly wireless communication solution
-
Ideal for beginners and professionals alike
-
Easy Returns
-
Quality Service
-
Original Product
How It Works
The transmitter module sends data wirelessly to the receiver using ASK modulation. When paired with microcontrollers like Arduino, Raspberry Pi, or ESP8266, this RF pair allows for reliable wireless communication over moderate distances with minimal setup.
Important Notes
-
Use an external antenna (e.g., 17.3 cm wire) for better range and stability.
-
Ensure clear line-of-sight for maximum transmission distance.
-
Avoid interference from other 433 MHz devices nearby.
