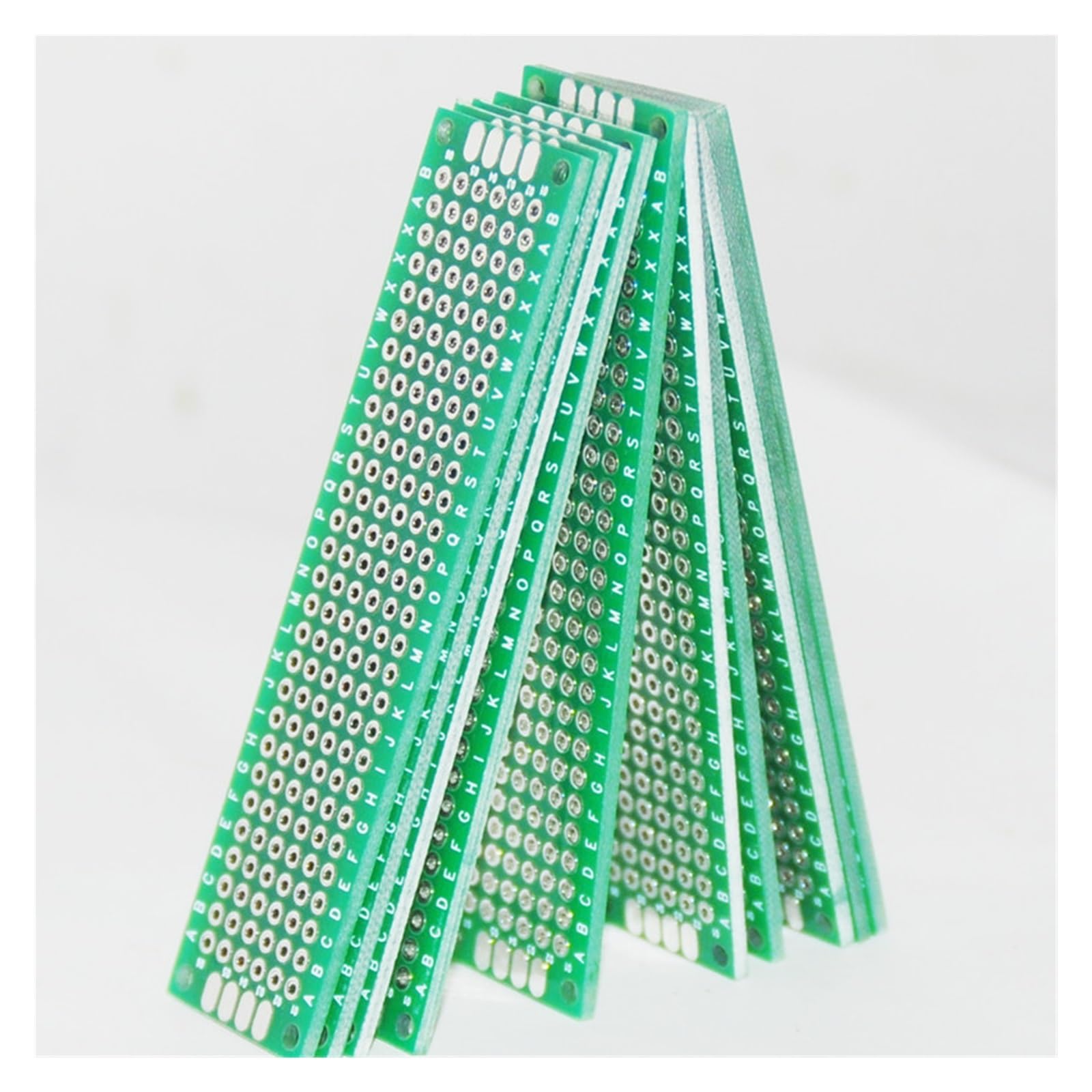

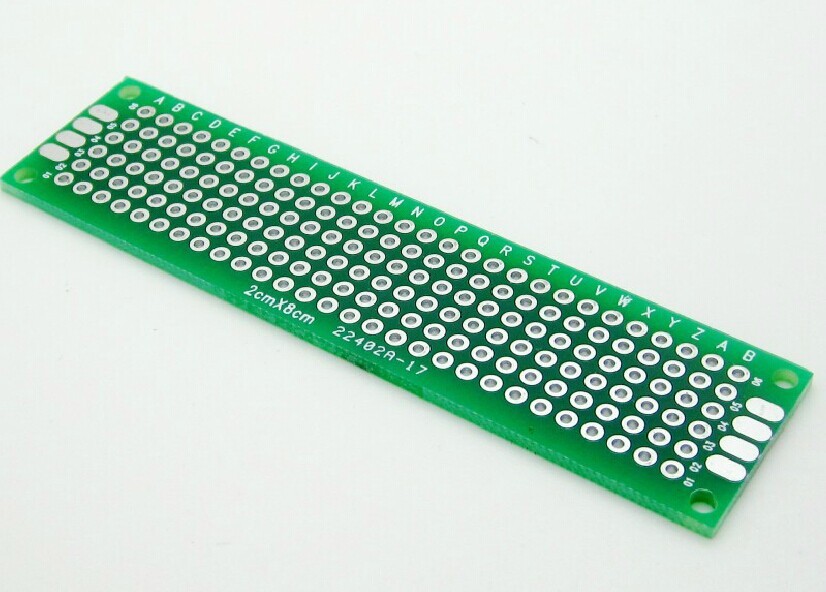

2 x 8 cm Universal PCB Prototype Board Double-Sided:
The 2 x 8 cm double-sided universal PCB prototype board is a compact and durable solution for developing and testing electronic circuits. With plated-through holes and standard 2.54mm spacing, this board supports solid soldering on both sides—ideal for dense or complex component layouts.
Applications:
-
Compact DIY and maker projects
-
Prototyping and circuit validation
-
Arduino/Raspberry Pi compatible modules
-
Dual-layer circuit development
Advantages:
-
Double-sided design allows flexible routing
-
Suitable for more complex circuits in a small footprint
-
Ideal for permanent project builds
-
Easy Returns
-
Quality Service
-
Original Product
Key Features:
-
Size: 2 cm x 8 cm – compact and space-efficient for small project enclosures
-
Material: FR4 (Glass Epoxy) – offers excellent insulation, heat resistance, and mechanical strength
-
Type: Double-sided with copper-plated through-holes – allows component leads to be soldered on both sides for improved circuit density
-
Hole Spacing: Standard 2.54 mm (0.1 inch) pitch – compatible with all standard through-hole electronic components
-
Hole Diameter: Approximately 1 mm – supports standard DIP ICs, resistors, capacitors, headers, and more
-
Copper Coating: Tinned for oxidation resistance and easier soldering
-
Layout: Grid-style hole alignment with printed coordinates – helps in neat component placement and referencing
-
Compatibility: Works seamlessly with microcontrollers like Arduino, ESP32, and Raspberry Pi GPIO extensions
