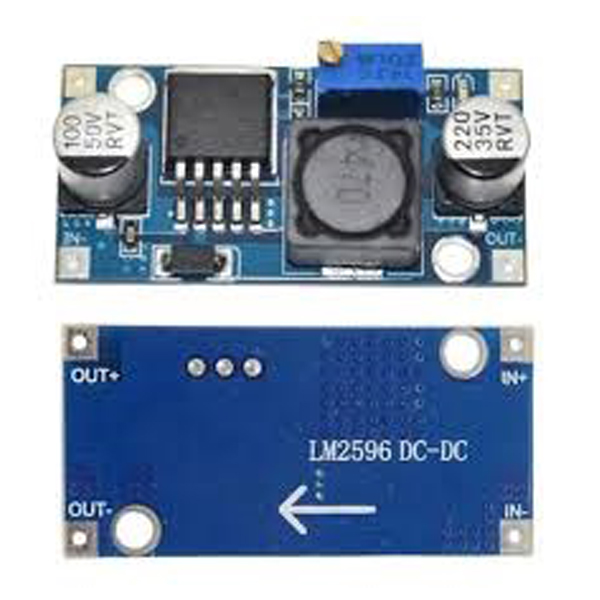

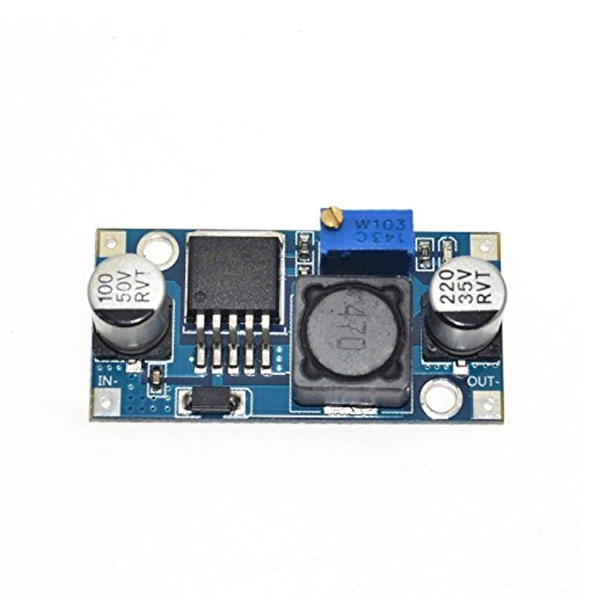

LM2596 BUCK CONVERTER STEP DOWN POWER SUPPLY MODULE:

Overview

The LM2596 Step-Down Power Supply Module is a high-efficiency voltage regulator designed for various electronic projects. This module utilizes the LM2596 buck converter IC to efficiently step down input voltage to a lower, stable output voltage, making it ideal for powering microcontrollers, sensors, and other electronic devices.

Key Features

• Input Voltage Range: 4.5V to 40V
• Output Voltage Range: 1.25V to 37V (adjustable via a multi-turn potentiometer)
• Output Current: Up to 3A with heat sink
• High Efficiency: Up to 92%, reducing heat and improving energy efficiency
• Built-in Thermal Shutdown and Current Limiting: Protects the module and connected devices
• Compact Design: Small form factor, easy to integrate into various projects
• Easy to Use: Simple wiring and adjustment make it suitable for both beginners and experienced users

How to Use

1. Connect Input Voltage: Connect your input power source (4.5V to 40V) to the module’s input terminals.
2. Adjust Output Voltage: Use the multi-turn potentiometer to adjust the output voltage to the desired level.
3. Connect to Load: Attach the load to the output terminals. The module will regulate the voltage to the set output level.
4. Monitor and Fine-Tune: Optionally, monitor the output voltage with a multimeter and fine-tune if necessary.

Why Choose LM2596 Step-Down Module?

This module is favored for its reliability, efficiency, and versatility. Whether you're a hobbyist or a professional, the LM2596 Step-Down Power Supply Module offers a cost-effective and easy-to-use solution for all your voltage regulation needs.

Enhance your electronic projects with stable and efficient power regulation today!
