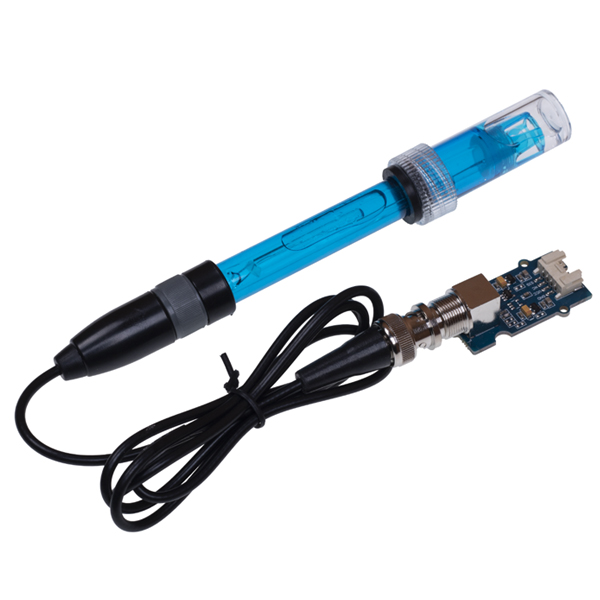

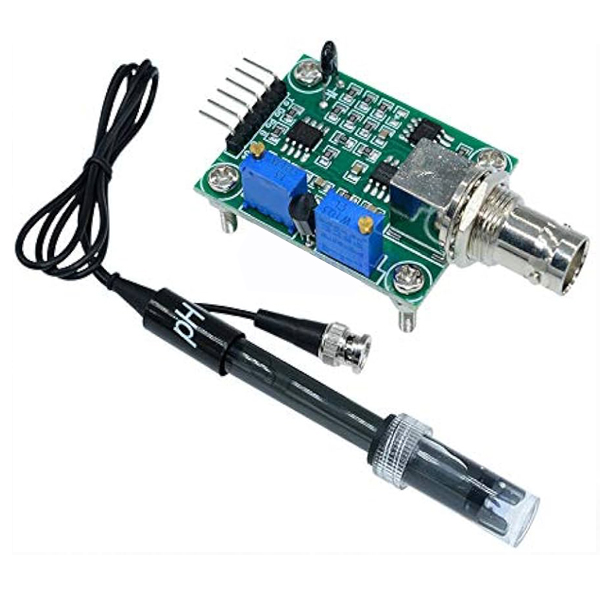

Industrial Grade Analog PH Sensor Module with PH Electrode Probe BNC :

 The Analog PH Sensor Module with PH Electrode Probe (BNC) is designed for accurate and reliable pH measurements in various liquid solutions. It is ideal for applications in laboratories, aquariums, hydroponics, and environmental monitoring. The sensor module converts the pH levels into an analog voltage output, which can be easily read by a microcontroller or an analog-to-digital converter.

Key Features

• High Sensitivity and Accuracy: The sensor provides precise pH readings, ensuring accurate monitoring of solution acidity or alkalinity.
• Wide Measurement Range: Suitable for a wide pH range, typically from 0 to 14, allowing for versatile use in different applications.
• Durable Electrode: The included pH electrode probe is robust and designed for long-term use in various environments.
• Standard BNC Connector: The BNC connector ensures easy and secure connections, providing stable signal transmission.
• Analog Output: The module outputs a corresponding analog voltage based on the pH level, compatible with most microcontrollers, including Arduino, Raspberry Pi, and other development boards.
• Easy Calibration: Features adjustable trimmers for quick and easy calibration, ensuring accurate readings.

How to Use

1. Connect the PH Electrode Probe to the module using the BNC connector.
2. Power the module with a 5V DC power supply.
3. Connect the analog output to a microcontroller or ADC input.
4. Submerge the electrode in the solution to measure the pH level.
5. Read the analog voltage and convert it to pH using the provided formula or calibration chart.
