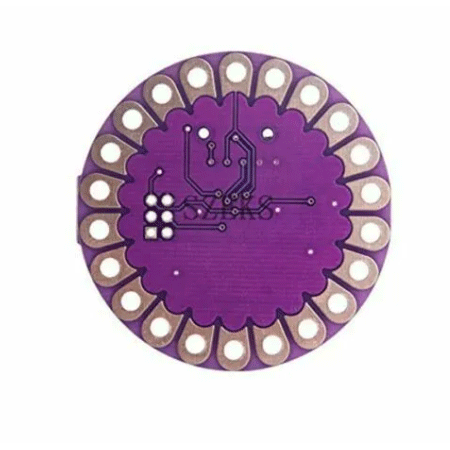

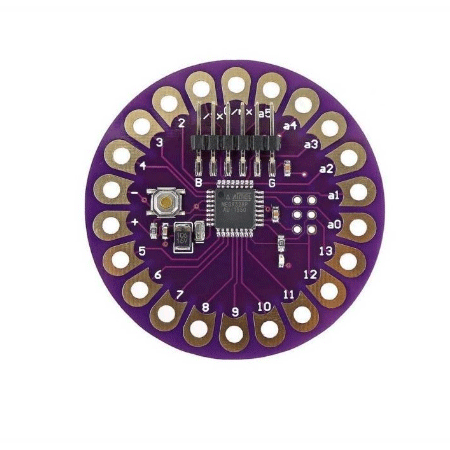

Robo Pixel || Arduino LilyPad ATmega328P compatible Board

34.81% OFF

Arduino LilyPad ATmega328P compatible Board

₹339 ₹520 34.81% OFF

Microcontroller: ATmega168 or ATmega328V
Operating Voltage: 2.7-5.5 V
Digital I/O Pins: 14
PWM Channels: 6
Analog Input Channels: 6
DC Current per I/O Pin: 40 mA

LilyPad 328 ATmega328P Main Board 16M

Arduino LilyPad ATmega328P compatible Board:

The Arduino LilyPad is a series of wearable microcontroller boards designed for e-textiles and wearable projects. The LilyPad boards are based on the ATmega328P microcontroller, which is the same microcontroller used in the popular Arduino Uno board. Therefore, if you're looking for a LilyPad board compatible with the ATmega328P, you would typically be referring to the LilyPad Arduino with ATmega328P.

Here are some key features of the LilyPad Arduino with ATmega328P:

Microcontroller: ATmega328P
Operating Voltage: 2.7V to 5.5V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 6
Flash Memory: 32 KB (ATmega328P)
SRAM: 2 KB (ATmega328P)
EEPROM: 1 KB (ATmega328P)
Clock Speed: 8 MHz

Keep in mind that the LilyPad boards are designed to be sewn into fabrics and are suitable for wearable projects. They have a round shape and typically feature large holes for easy attachment to clothing or other materials.

Easy Returns
Quality Service
Original Product

Features :

Board will run from 2V to 5V.
The latest version of the LilyPad supports automatic reset for even easier programming.
The backside of the LilyPad is now completely flat!
We now use a surface mount programming connector to keep the header from poking through.
This version of the LilyPad now uses the new ATmega328 at 8MHz.
Arduino 0016 supports the Pro Mini Arduino 328/8MHz/16MHZ.
Use this setting when using this new LilyPad 328.
