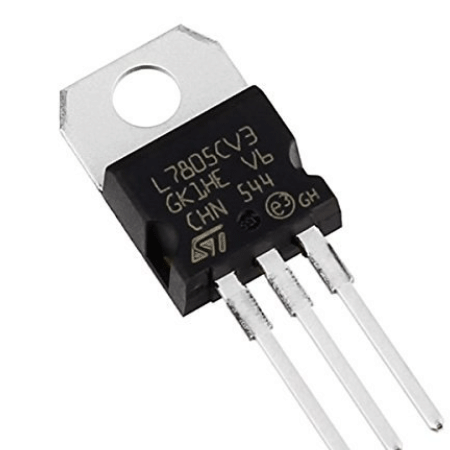

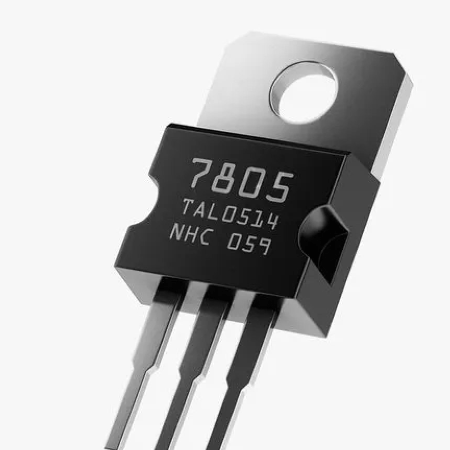

7805 Voltage Controller - Pack of 5

₹78 ₹130 40% OFF

Usage/Application Voltage regulator
Output Voltage 5V
Regulator Type Linear Regulator
Mounting Type DIP

7805 Voltage Controller

7805 Voltage Controller - Pack of 5:

The 7805 is a popular voltage regulator integrated circuit (IC) that provides a stable, fixed output voltage of +5 volts. It is part of the 78xx series of voltage regulators, where "78" indicates a positive voltage regulator and "05" signifies the output voltage of +5 volts.

Here are the key features of the 7805 voltage regulator:

IC Type: Voltage Regulator (Positive)
Output Voltage: +5 volts (Fixed)
Output Current: Up to 1A (depending on the variant)
Input Voltage Range: Typically around 7V to 25V, with variations based on specific models.
Package Type: TO-220, TO-92, and other package styles.
Pin Configuration:
- Pin 1 (Input): Connects to the unregulated input voltage.
- Pin 2 (Ground): Common ground reference.
- Pin 3 (Output): Provides the regulated +5V output

Easy Returns
Quality Service
Original Product

Usage:

The 7805 is widely used in electronic circuits where a stable +5V supply is required. Common applications include powering microcontrollers, analog circuits, sensors, and various digital components.

Decoupling Capacitors: It is often recommended to use input and output decoupling capacitors (typically electrolytic or ceramic capacitors) to improve stability and filtering.
Heat Dissipation: Depending on the input-output voltage differential and output current, the 7805 may generate some heat. Adequate heat sinking may be required, especially for higher current applications.
Variants: There are different variants of the 7805, such as the LM7805, UA7805, and more, which may have slight variations in specifications. Always refer to the datasheet of the specific model you are using for accurate information.
