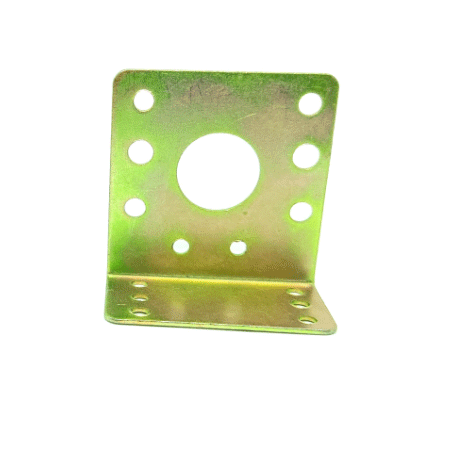

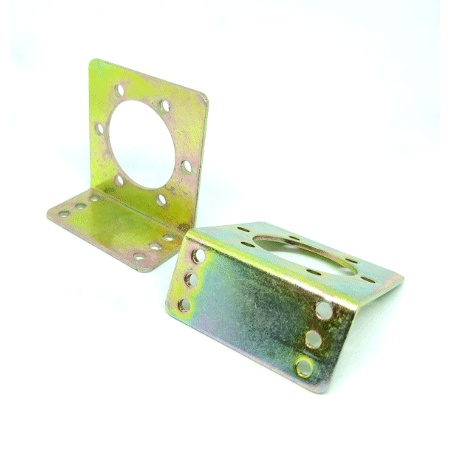

Center Shaft DC Motor Clamp:

This motor mounting bracket is designed for Center Shaft DC Motor to make the motor mounting easier and faster.

The clamps serve as the fundamental parts when it comes to chassis. With this Center Shaft DC Motor L Clamp (Bracket) motor mounting will become very convenient.

This L Clamp bracket for DC Motor is made up of 2mm thick Mild Steel which gives them excellent strength and stability. It has 13.5mm diameter holes for attaching the motor to the bracket and also 3mm diameter holes for mounting the bracket to the chassis or application.

Applications :

1. DC motor position / velocity control
2. Position and velocity servomechanisms
3. Factory automation robots
4. Numerically controlled machinery
5. Computer printers and plotters

Motor mounting side

• Height: 40 mm
• Width: 40 mm

Bracket mounting side

• Length: 40 mm
• Width: 24 mm
