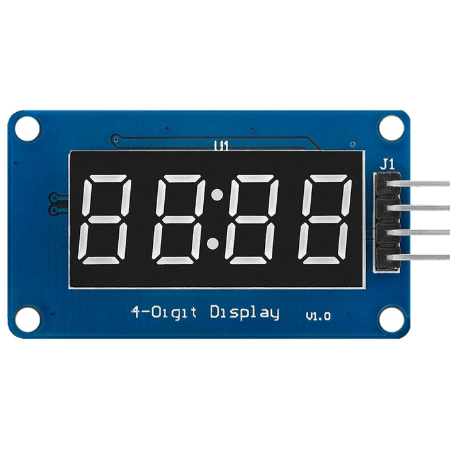

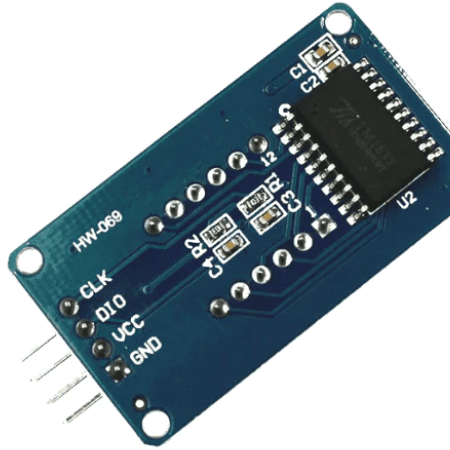

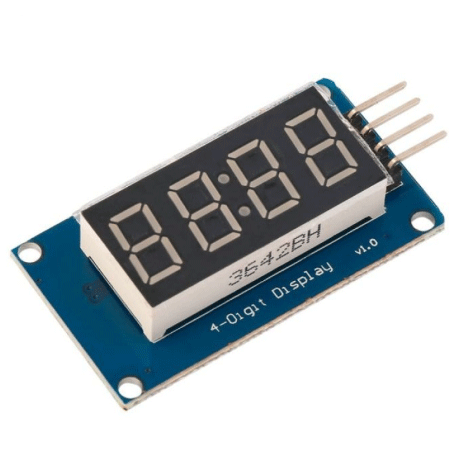

4 Digit Display Module:

Here are some key features and considerations for a 4-digit display:

1. Digit Count: A 4-digit display consists of four individual numeric digits. Each digit can display the numbers 0 through 9.
2. Common Anode or Common Cathode: 4-digit displays come in two common configurations: common anode and common cathode. In a common anode display, all the anodes of the digits are connected together, while in a common cathode display, all the cathodes are connected together.
3. Segment Type: Each digit is composed of segments that can be illuminated to form numeric digits (0-9) or other characters. The segments are usually labeled as a-g, representing the seven segments of each digit.
4. Multiplexing: To control all four digits using a limited number of pins, multiplexing is often employed. Multiplexing involves rapidly switching between digits, giving the illusion that all digits are continuously lit. This technique reduces the number of required pins for interfacing with a microcontroller.
5. Interface: 4-digit displays often use a common cathode or common anode connection for each digit and require separate connections for each segment. Microcontrollers, such as Arduino, can be used to control the display by providing signals to the individual segments.
6. Segment Mapping: The mapping of segments to numbers may vary between different display models. Refer to the datasheet for the specific mapping used by the display you're working with.
7. Decimal Point: Some 4-digit displays include a decimal point for displaying decimal values. This additional segment is controlled separately.
8. Voltage and Current Requirements: Check the voltage and current specifications of the 4-digit display to ensure proper operation. Common voltages include 5V and 3.3V.
9. Brightness Control: Some displays allow you to control the brightness of the digits by adjusting the current flowing through the segments. This can be achieved using external resistors or built-in brightness control features.
10. Arduino and Raspberry Pi Compatibility: 4-digit displays are commonly used with popular development platforms like Arduino and Raspberry Pi. Libraries and example code are available to facilitate integration.
11. Applications: 4-digit displays are widely used in digital clocks, timers, temperature displays, scoreboards, and various electronic projects requiring numeric output.
12. Datasheet: It's important to refer to the datasheet and documentation provided by the manufacturer for detailed specifications, pin configurations, and usage guidelines for the specific 4-digit display you are using.
