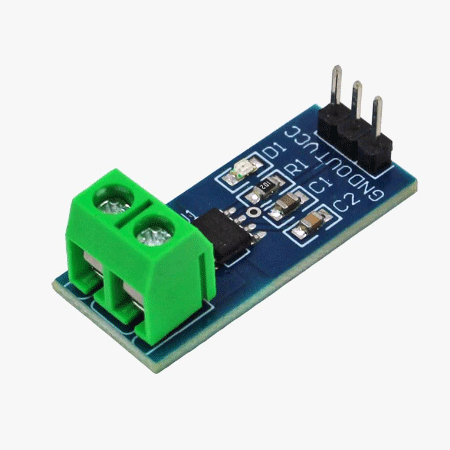

ACS712 Current sensor (20A):

Here are some key features and considerations for the ACS712 20A range current sensor module:

1. Current Measurement Range: The ACS712 20A module is designed to measure current in the range of -20A to +20A. The output voltage is proportional to the current flowing through the sensor.
2. Hall Effect-Based Sensing: Similar to other ACS712 modules, the sensor uses the Hall Effect to measure the magnetic field generated by the current passing through the conductor. The sensor then converts this information into an analog voltage output.
3. Analog Output: The module provides an analog output voltage that is proportional to the current being measured. The output voltage varies linearly with the current, making it suitable for interfacing with microcontrollers and analog-to-digital converters (ADCs).
4. Zero Current Output: The sensor outputs a voltage close to the mid-point (Vcc/2) when there is no current flowing through the conductor. This is often referred to as the "zero current" output.
5. Sensitivity: The sensitivity of the ACS712 20A module is specified in mV/A (millivolts per ampere). This parameter indicates how much the output voltage changes for a unit change in current.
6. Supply Voltage: The module typically operates within a specified voltage range (e.g., 4.5V to 5.5V). Ensure that you provide a stable power supply within the recommended range.
7. Low Noise and Offset: The ACS712 modules are designed to have low noise and low offset, enhancing their accuracy in current measurements.
8. Overcurrent Protection: Some versions of the ACS712 may have built-in overcurrent protection, ensuring the sensor can handle short-duration current spikes beyond its nominal range.
9. High-Bandwidth Operation: The sensor is capable of high-bandwidth operation, allowing it to respond quickly to changes in the current flowing through the conductor.
10. Connection: The module usually has three pins: VCC (power supply), GND (ground), and OUT (analog output). Connect VCC and GND to the power supply, and OUT to the microcontroller or measurement device.
11. Output Filtering: In some applications, additional filtering may be required to reduce noise in the output signal. This can be achieved using capacitors or other filtering components.
12. Applications: The ACS712 20A range current sensor module is commonly used in various applications, including energy monitoring, motor control, power supply monitoring, and robotics.
13. Calibration: Before accurate current measurements, calibration may be required to correlate the sensor's output voltage with the actual current flowing through the conductor.
14. Documentation: Refer to the datasheet and documentation provided by the manufacturer for detailed specifications, pin configurations, and usage guidelines.
