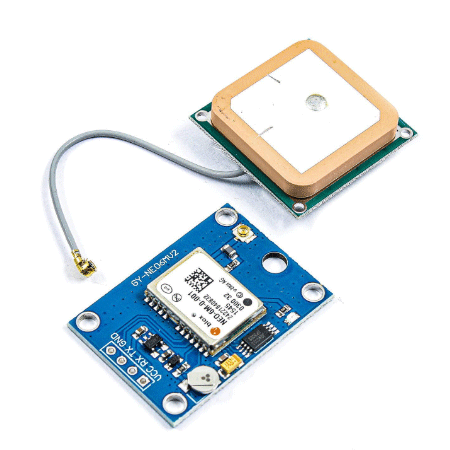

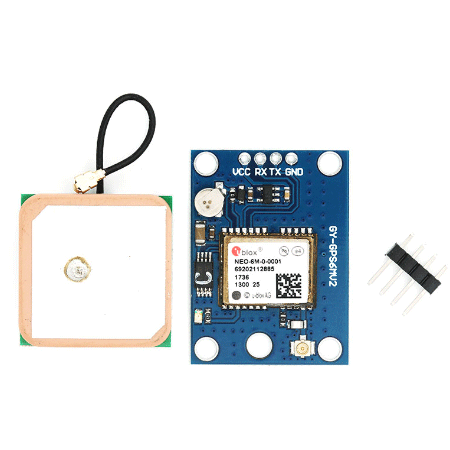

Neo 6m GPS Module
Neo 6m GPS Module
Neo 6m GPS Module

Neo 6m GPS Module

₹269 ₹529 49.15% OFF

  • Receiver Type : 50 channels, GPS L1(1575.42Mhz)
  • Operating Voltage : 2.7V ~ 3.6V
  • Operating Current : 45mA
  • TXD/RXD Impedance : 510?
  • Operating Temperature : -40°C ~ 85°C

It can track up to 22 satellites over 50 channels

Neo 6m GPS Module:


Here are some key features and considerations for the NEO-6M GPS module:

  1. GPS Receiver: The NEO-6M module is equipped with a GPS receiver that communicates with satellites to determine its precise location.
  2. Communication Interface: The module typically uses UART (Universal Asynchronous Receiver-Transmitter) communication to interface with microcontrollers or other devices. It communicates through serial data transmission.
  3. Baud Rate: The baud rate is the speed at which data is transmitted between the GPS module and the connected device. The NEO-6M allows users to configure the baud rate, and common rates include 9600 bps and 115200 bps.
  4. Power Supply: The module usually operates on a low voltage, commonly around 3.3V or 5V, depending on the specific model. Ensure that the power supply voltage matches the module's requirements.
  5. Antenna: The NEO-6M module may require an external GPS antenna for optimal performance. The antenna is crucial for receiving signals from GPS satellites.
  6. Position Accuracy: The module provides latitude, longitude, and altitude information with a certain level of accuracy. The accuracy is influenced by factors such as the number of visible satellites, signal strength, and the quality of the GPS fix.
  7. Time-to-First-Fix (TTFF): TTFF is the time it takes for the GPS module to acquire enough satellite signals to calculate a position fix. The NEO-6M generally has a fast TTFF, especially under clear sky conditions.
  8. Update Rate: The update rate refers to how frequently the GPS module provides a new set of position data. The NEO-6M allows users to configure the update rate, with common rates ranging from 1 Hz to 10 Hz.
  9. NMEA Sentences: The module outputs data in the NMEA (National Marine Electronics Association) format. Common sentences include GGA (Global Positioning System Fix Data), RMC (Recommended Minimum Specific GNSS Data), and others.
  10. Cold Start vs. Warm Start: The NEO-6M can perform a cold start (from a completely powered-off state) or a warm start (from a partially powered state) to acquire satellite signals faster.
  11. LED Indicators: Some NEO-6M modules come with LED indicators to show the status of GPS signal acquisition, fix status, and data transmission.
  12. Compatibility: The NEO-6M is compatible with various microcontrollers, such as Arduino, Raspberry Pi, and other platforms. Libraries and sample code are available for easy integration.
  13. Applications: NEO-6M modules are used in applications such as navigation systems, vehicle tracking, geocaching, and location-based IoT projects.
  14. Configuration: Users can configure the NEO-6M module by sending specific commands through the UART interface. Configuration options include baud rate, update rate, and more.
  15. Documentation: Refer to the datasheet and documentation provided by the manufacturer for detailed specifications, pin configurations, and usage guidelines for the specific NEO-6M module you are using.


  • icon
    Easy Returns
  • icon
    Quality Service
  • icon
    Original Product


The required data pins of the NEO-6M GPS chip are broken out to a 0.1″ pitch headers. It contains the pins needed for communication with the microcontroller over the UART. The module supports baud rates from 4800bps to 230400bps with a default baud of 9600.
